Kirloskar Pressure Boosting Pumps

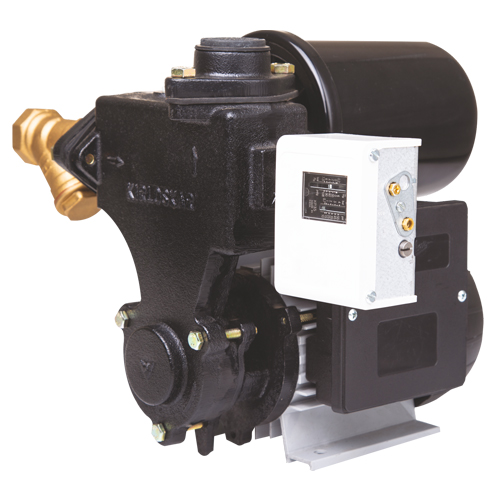

K-BOOSTER

SPECIFICATIONS

  • Head Range: Up to 28 meters
  • Discharge Range: Up to 2050 LPH
  • Power Rating: 0.37 kW (0.5 HP)
  • 2 Pressure Range: Up to 2.4 kg/cm
  • Voltage range: 180 to 260 Volts (Single phase)
  • Insulation: B Class
  • Protection: IP 44
  • Tank Size: 2 Litres

HL - Lifter

SPECIFICATIONS

  • Head Range: Up to 50 metres
  • Discharge Range: Up to 75 LPM
  • Power Rating: 0.37 to 0.93 kW (0.5 to 1.25 HP)
  • Voltage Range: 240 volts ± 10%

CPBS

SPECIFICATIONS

  • Head Range: Up to 52 metres
  • Discharge Range: Up to 140 LPM
  • Power Rating: 0.4 to 1.1 kW (0.6 to 1.5 HP)
  • 2 Pressure Range: Up to 4.4 kg/cm
  • Voltage Range: 180 to 240 volts (single phase)
  • Insulation: B class
  • Protection: IP 44
  • Tank Size: 24 liters
