Kirloskar Self-priming Pumps

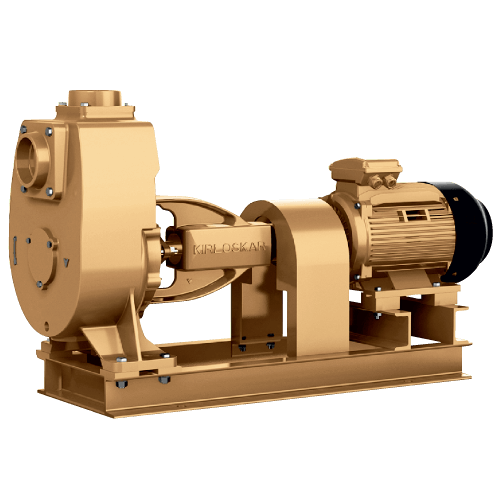

SP Coupled Set with IE5 Motor
SPECIFICATIONS
- Head Range : Upto 32 metres
- Discharge Range : Upto 10 LPS
- Power Rating : 0.75 – 3.7 kW / (1 - 5 HP)
- RPM : 2900
- Voltage range : 415±10%
- Insulation : High Grade F Class Insulation with Temperature rise restricted to B Class
- Protection : IP 55

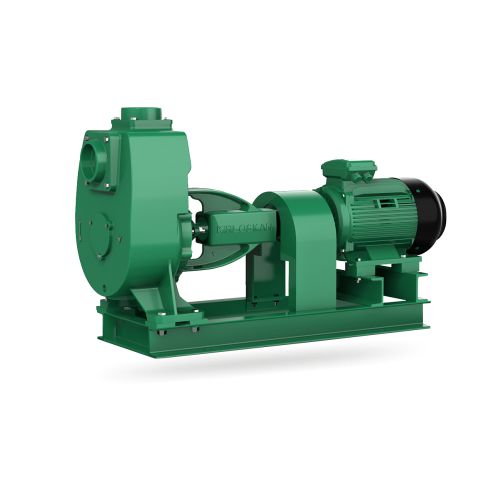

SP-Coupled Set with IE4 Motor
SPECIFICATIONS
- Head range: Up to 36 metres
- Discharge range: Up to 75 LPS
- Power rating: 0.75 - 18.7 kW (1 - 25 HP)
- Voltage range: 415±10%
- Class of insulation: F class (Insulation with Temperature rise restricted to B Class)
- Protection: IP 55

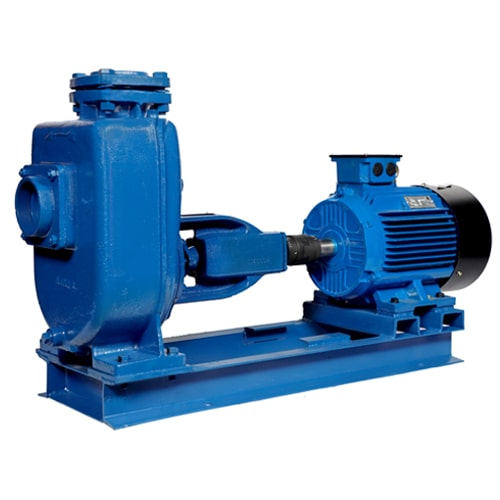

SP (COUPLED)
SPECIFICATIONS
- Head range: Up to 44 metres
- Discharge Range: Up to 80 LPS
- Power Rating: 0.75 - 18.7 kW & (1 - 25 HP) motor coupled
- Voltage Range: 415±10%
- Class of insulation: F class (motor coupled only)
- Protection: IP 55

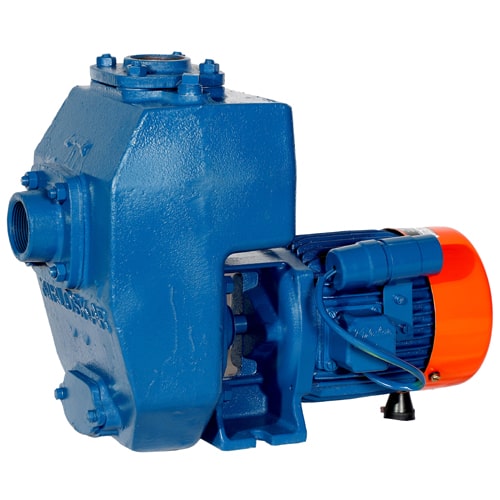

SP(MONOBLOC)
SPECIFICATIONS
- Head range: Up to 24 metres
- Discharge Range: Up to 17.5 LPS
- Power Rating: 0.37 - 3.7 kW & (0.5 - 5 HP)
- Voltage Range: 300 - 440V three phase (for motor coupled only) & 180 - 240V (Single Phase)
- Class of insulation: B / F class
- Protection: IP 44 / IP 55

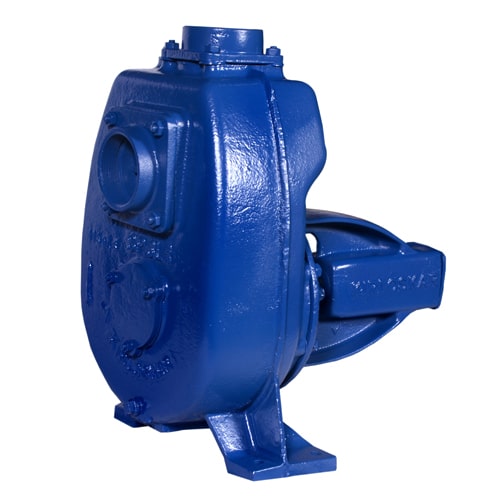

SP BARE SHAFT
SPECIFICATIONS
- Head range: Up to 44 metres
- Discharge Range: Up to 80 LPS
- Power Rating: 0.75 - 18.7 kW & (1 - 25 HP) motor coupled
- Voltage Range: 415±10%
- Class of insulation: F class (motor coupled only)
- Protection: IP 55
